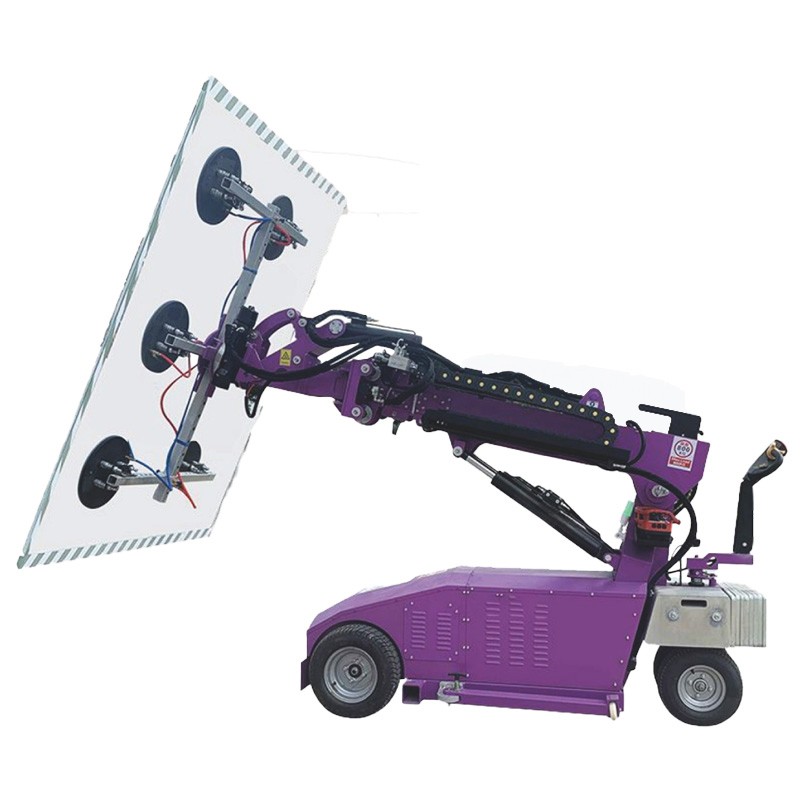

VSR-800L Electric glass installation vehicle

The VSR800L Glass Installation Vehicle is designed and developed for the installation of larger-sized and heavier glass in construction projects. It has a maximum load capacity of 800kg and a maximum lifting height of 4.6 meters. It has been in the market for 7-8 years and is known for its stability. It has been involved in the installation of glass in many well-known buildings and can handle various types of construction panels.

Electric Glass Vacuum Suction Cup Installation Vehicle

Main Functions

● Front-wheel drive electric propulsion with solid large-surface tires for strong traction.

● Electric hydraulic control for arm lifting, extension, and retraction.

● Electric hydraulic flipping and rotating for suction cup rack.

● Electric side tilt and electric lateral micro-adjustment for suction cup rack.

● All control actions are integrated with both wired and wireless dual remote controls.

● All movement adjustments can achieve control within millimeter-level range for precise alignment.

● Equipped with multiple safety devices including vacuum alarm, battery level alarm, charging protection,

anti-rollover device, automatic brake, emergency stop, overload alarm, etc.

VSR-800L Sspecifications

Model	VSR-800L
Max Lifting Capacity	800kg
Max Working Height	4.6m
Max Suction Panel Size Reference (Considering Panel Thickness)	7*3M
Traveling Speed	0-4km/h
Rated Power	2.2 kw
Drive Mode	24V Motor Front Drive (with directional assistance, wireless remote control)
Climbing Ability	12%
Suction Cup Configuration	8 suction cups with Φ400mm
Vacuum System	Dual Pump Dual System
Vacuum Safety Alert	Buzzer alarm, digital display & mechanical pressure gauge
Vehicle Endurance	4h-8h
Forearm Telescopic Distance	1150mm
Suction Cup Rack Flipping Angle	Electric Flip 0°-180°
Suction Cup Rack Rotation Angle	Hydraulic Control Infinite Rotation
Horizontal Movement Distance of the Suction Cup Rack	±50mm
Vertical Movement Distance of the Suction Cup Rack	----
Left and Right Swivel Angle of the Suction Cup Rack	Electrically Controlled Left and Right 90°
Battery Capacity	DC12V2150Ah
Charging Voltage	AC220V/AC110-240V
Vehicle Endurance	4h-8h
Dimensions (LWH)	31001620880*mm
Weight	1925kg
