Pull-handle Pneumatic Vacuum Lifting

The SG pull-handle pneumatic vacuum lifter handle is manufactured from stainless steel material and is widely used in the food and chemical industries where strict dust control is required. The handle features adjustable air intake, and extended handles can be customized according to the stacking height. However, it is more suitable for the handling of products within a height of 1700mm. With a lifting speed of 0.8 meters per second, it is ideal for feeding raw materials in the food processing and chemical industries, loading onto mixers or melting furnaces, as well as for unloading and stacking products at the end of packaging lines.

Pull-handle Pneumatic Vacuum Lifting

Specification

Model		ESL-SG 120/22	ESL-SG140/22	ESL-SG160/30	ESL-SG180/30
Maxi Load Capacity		35kg	45kg	60kg	80kg
Lifting Height		1700/2500mm	1700/2500mm	1700/2500mm	1700/2500mm
Maximum Powe		Vacuum Pump(60m³/h)	Fan 2.2kw	Fan 3.0kw	Fan 3.0kw

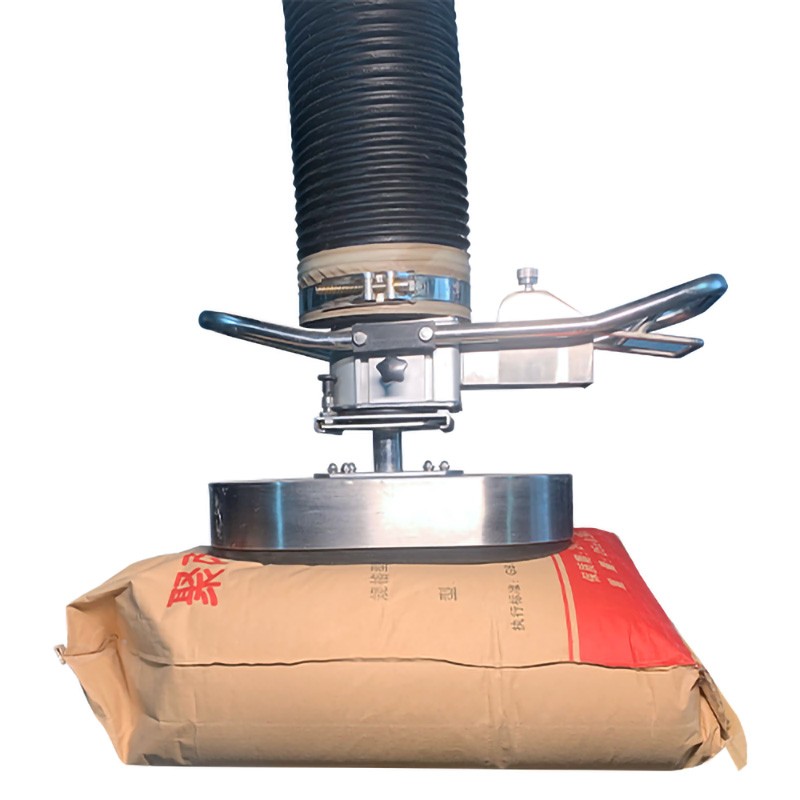

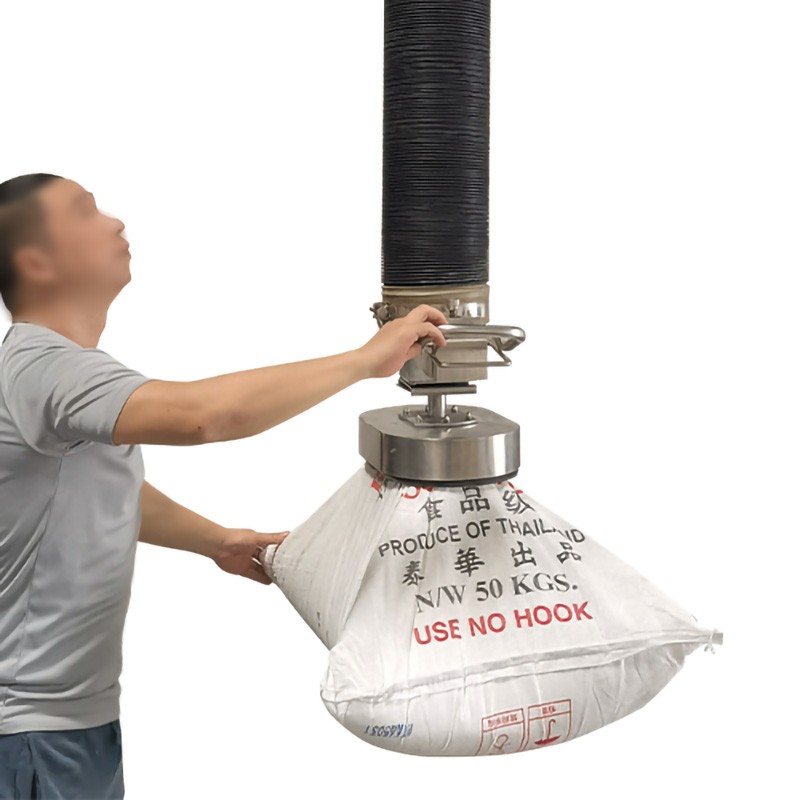

Suction Cup Head Configuration (According to the workpiece grasping Configuration)	Bagged Products	Bag Suction Cup SUS190*290R	Bag Suction Cup SUS190*290R	Bag Suction Cup SUS190*290R	Bag Suction Cup SUS190*290R
	Cardboard Box /Case	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series

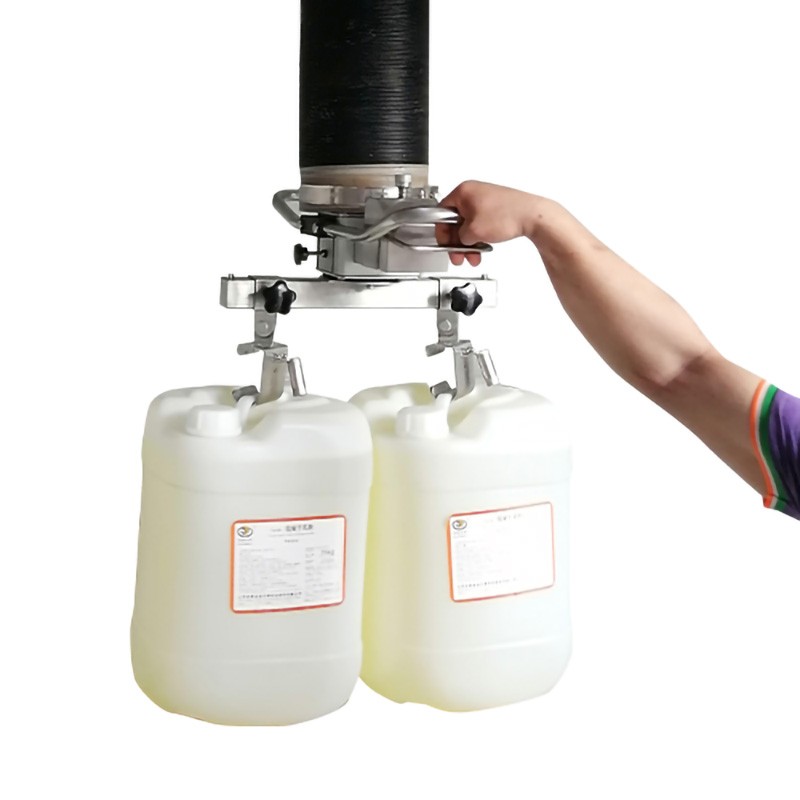

	Drummed Products	HB Corrugated Suction Cup	HB Corrugated Suction Cup	HB Corrugated Suction Cup	HB Corrugated Suction Cup
	Other shaped products	Customizable	Customizable	Customizable	Customizable
