vacuum pad gripper for industrial lifting

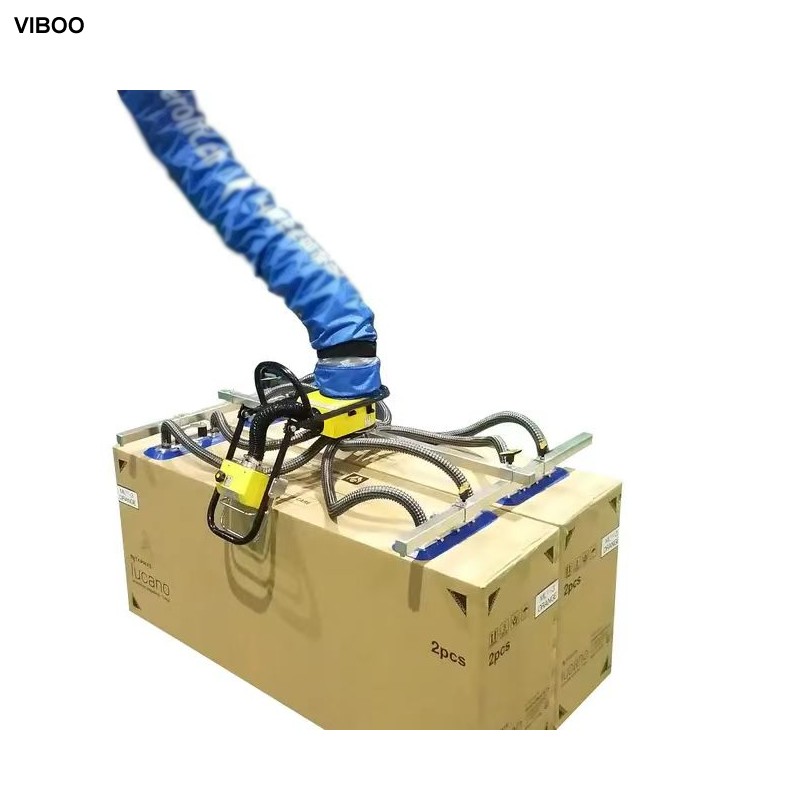

The vacuum pad gripper is a pneumatic suction gripper that can be used for industrial lifting.

The foam vacuum gripper consists of two parts: the base and the suction cup. The base is attached to the object to be lifted, while the suction cup attaches to the object that will lift it.

The foam vacuum gripper may be used in several different applications, such as moving objects with ease, or lifting heavy items with less effort.

We're pleased to introduce our new line of vacuum pad grippers for industrial lifting.

Our foam vacuum gripper is a great option if you need to lift heavy objects, but don't want to invest in expensive machinery or complicated systems. Our pneumatic suction gripper is designed for larger applications—including handling bulk materials such as lumber and other large objects.

Both of these products are affordable, easy-to-use alternatives to more traditional lifting methods. Contact us today to learn more about how our vacuum pad gripper could work for you!

Our solutions can be optimized for different customer requirements and environments. With a series, with columns of suckers and grips, viboocan grasp, lift and carry almost anything, packages include: parcels, luggage, sacks, bags, sheets, glass, casks, barrels, bottles, food, stones, the Windows, etc.

Model	KSIB 100-30	KSIB 100-40	KSIB 100-50	KSIB 100-60	KSIB100-80	KSIB100-100	KSIB100-120	KSIB100-180
Tube Length	2500mm-4000mm
Suction Capacity	30kg	40kg	50kg	60kg	80kg	100kg	120kg	180kg
Tube Dia.	100mm	120mm	140mm	160mm	180mm	200mm	230mm	250mm
Lifting Speed	1m/s
Suction Dia.&Qty.	TBD
Vacuum Power	2200W		3000W					5500W
A-crane	3800mm-4150mm (to be customized)
B-Rocker Arm	3000mm-4000mm
C-Lifting Stroke	0 to 1250mm-0 to 2500mm (to be customized)
Rotation	230°
Voltage	380V 50HZ

Main Features
User friendly
A vacuum tube uses suction to both grip and lift the load in a single movement. The control handle is easy for the operator to use and feels almost weightless. With a bottom swivel, or an angle adaptor, the user can rotate or turn the lifted object as required.
* Good ergonomics means good economics
Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization - usually combined with higher productivity.
* Easy installation and maintenance

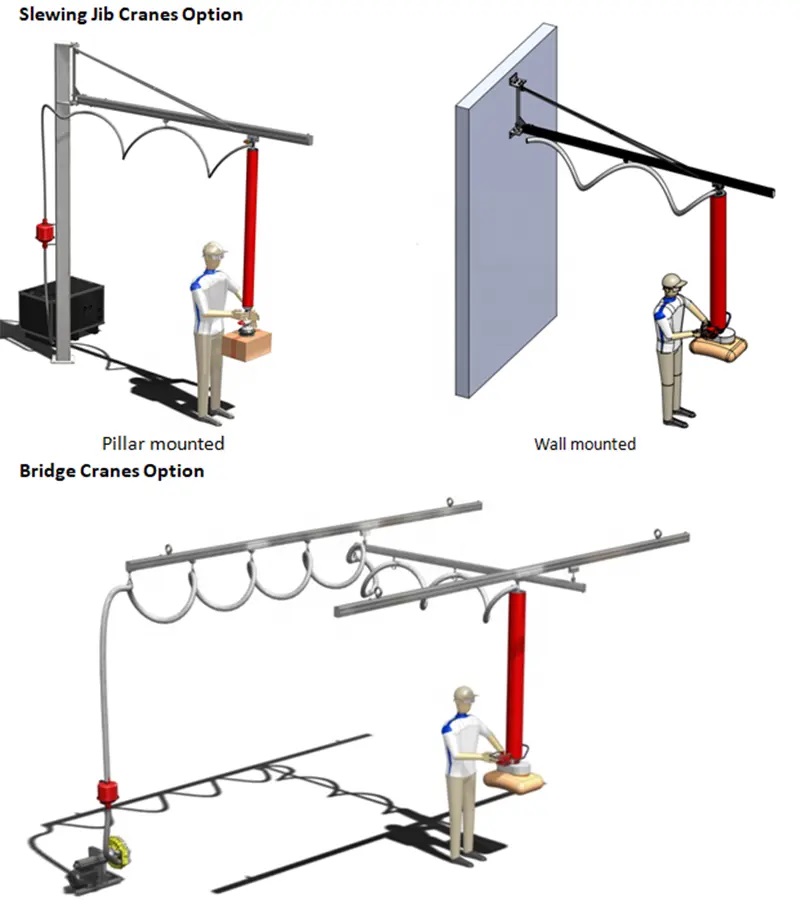

The power source can either be an electric pump or pneumatic vacuum pump. The system is normally installed on a jib or a lightweight bridge crane. The installation is simple and is adapted to your specific lifting needs. Our lifters are made of
extremely hard-wearing parts which seldom require service and repair.
* Unique personal safety
viboois designed with several built-in safety features. For example, our non-return valve - a standard on all units - ensures that the load is not dropped if the vacuum suddenly stopped running. Instead, the load will be lowered to the ground in a controlled manner.
* Productivity
viboonot only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.
* Application specific solutions
For maximum flexibility the tube lifters are based on a modular system. For instance, the lift tube can be changed depending on the lifting capacity required. It is also possible to have an extended handle fitted to the viboofor applications where extra reach is required.
