K2 variable frequency mechanical hoist

 K2 variable frequency mechanical hoist

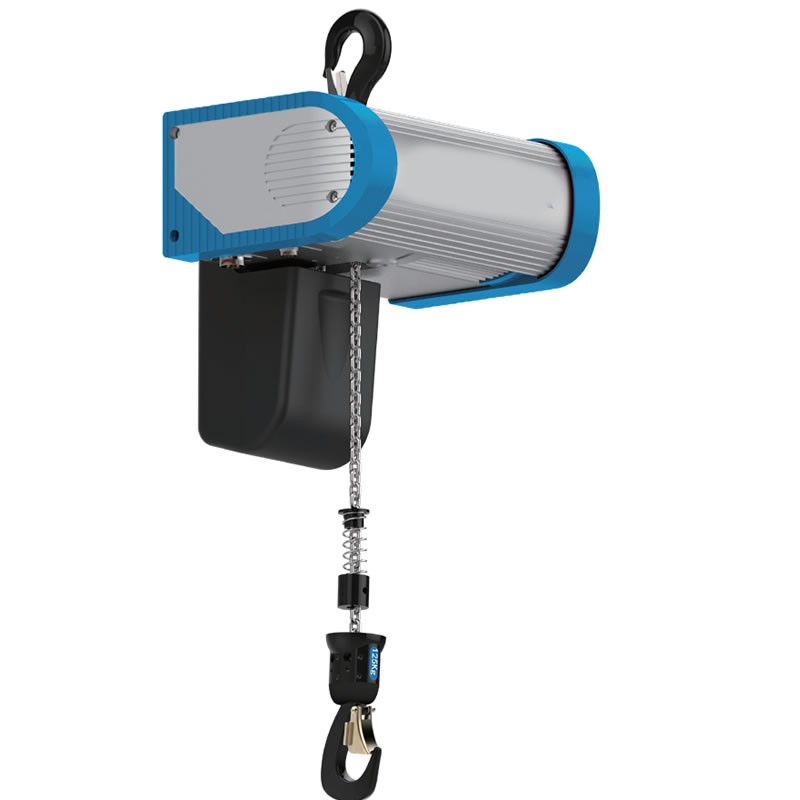

The K2 variable frequency mechanical hoist is an electronic chain hoist that is used as a stage hoist and as an intelligent lifting device. It can be used in industrial, commercial, and residential buildings.

The K2 variable frequency mechanical hoist has a capacity of 500 kg. This allows it to be used for lifting heavy objects. The maximum lifting height is 10 meters (32.8 ft).

high-quality wire rope mechanical hoist

The K2 variable frequency mechanical hoist has a load chain that is made from high-quality wire rope which makes it durable enough to lift heavy objects with ease. This wire rope comes with a steel jacket that protects it from being damaged by abrasion or corrosion when used in harsh environments such as outdoors or in areas where there are corrosive chemicals present such as oil refineries or chemical plants where acids are present due to chemical reactions between hydrocarbons and oxygen during combustion processes that occur inside engines; thus making them less likely to wear out quickly like other types of chains used in other types of machinery such as tractors; which require frequent maintenance checks every few months because they break easily after being used for longer periods of time without proper care

Description :

K2 series variable frequency chain hoist, ultra-low clearance design,

light volume, light weight. The customized variable frequency drive,with

the special variable frequency motor are used to control the lifting of the

hoist and the speed can be adjusted at will. It can be lower than 1/2 of

the conventional low gear at low speed, and higher than 50% of the

conventional high gear at high speed. Smooth operation, small lifting

and stopping vibration, no impact, low failure rate, strong protection

ability, and long service life of the whole machine. Multiple control

interfaces are reserved for automatic control.

Features

Customized variable frequency drive, special variable frequency motor, reliable

and stable；

 Speed range (customizable): low speed can be lower than 1/2 of the conven-

tional low speed gear, and high speed is higher than 50% of the conventional

high speed gear (when the rated load is less than 10%);

 Low noise, stable and vibration-free, high control accuracy；

 Perfect and multiple protection functions to ensure safe and stable operation；

Compared with the traditional hoist, the response speed is faster, the operation is

more reliable, the fault is lower, and the service life is longer；

 Abundant interfaces, flexible configuration, can adapt to various control inter-

face signals；

 Built-in remote control module to control the operation of electric trolley and

large cars.
