servo chain winch hoist system

Sell intelligent hoist servo system

Hoist systems are used to lift and lower heavy objects. They are often used in factories and warehouses to lift machinery, equipment, and other heavy loads.

A hoist system consists of a motor that drives a sprocket chain, which is wrapped around a drum. The chain pulls the load up or lowers it down when it turns at the same speed as the drum.

two types of hoist systems

There are two types of hoist systems: manual and servo. Manual systems use a lever to operate the hoist chain; they require physical effort from an operator to raise or lower the load. Servo systems use electric motors, which can be operated remotely with a remote control or even automatically by sensors that detect when certain conditions have been met (such as when an object has been placed on top of a platform).

Servo System

A servo system consists of a hoist, a winch, and a control unit. They are used to lift heavy loads vertically. As the load is lifted, the control unit activates the hoist to move up or down. The winch is needed to keep tension on the rope as it moves through the pulley system. The most important part of this system is that it uses an electric motor rather than manual power. This allows for much more precise lifting control and increases safety for workers who may be working near dangerous materials such as chemicals or volatile liquids.

Hoist System

A hoist system uses a motor-driven cable drum to lift objects vertically within a building or other structure. This type of hoisting equipment can also be used on ships and off-shore platforms where there is little room for installation space and where access might be limited due to weather conditions or other factors such as security concerns.

Winch Servo

A winch servo is similar in many ways to a winch system except that it uses an electric motor rather than manual power in order to raise or lower loads vertically using cables attached via pulleys at each end of the shafts on either side of your vehicle's frame (front/rear).

Descirption

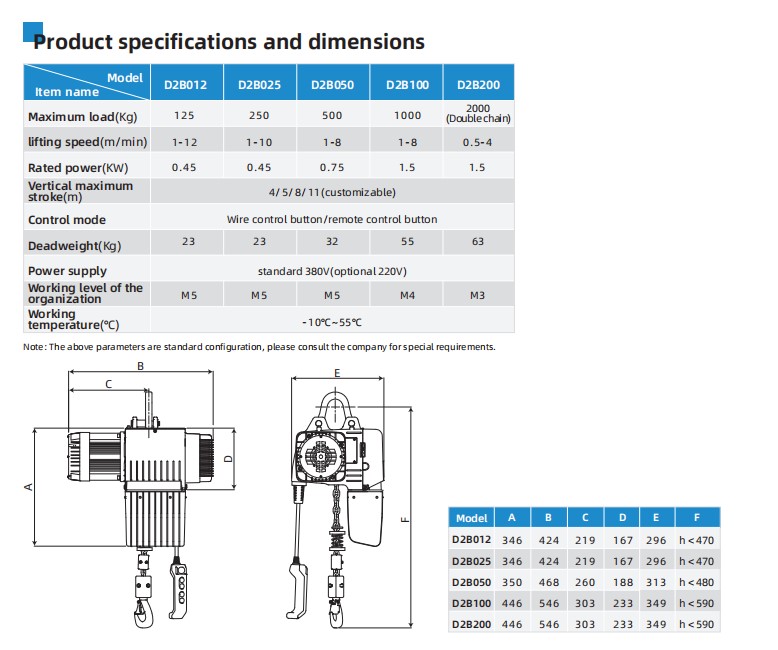

D2 series servo chain hoist, with low clearance design, adopts

servo drive control and special AC servo motor, which can give full

play to the lifting characteristics of the hoist. Electronic friction clutch

design, smooth starting, no vibration, no impact and no maintenance

through a special algorithm, which can maximize the service life of the

gearbox and the whole machine. Wide lifting and lowering speed

range, high accuracy, the minimum can be 0.05 m/min, the maximum

can be 27 m/min (less than 10% of the rated load), the protection

function is complete, the response speed is fast, the equipment is safe

and reliable, and the control interface is rich, which is convenient for

various peripheral control, especially suitable for the use of high-preci-

sion assembly workstations.

Features of the servo winch hoist

Special servo motor, stable operation performance；

 Object follows heart, precise positioning. Wide lifting and lowering speed range,

and high accuracy. The minimum can be 0.05m/min, and the maximum can be

27m/min (less than 10% of the rated load), which can be selected flexibly；

 Silent, stable and vibration-free, precise positioning and high accuracy；

 Electronic friction clutch design, long service life, maintenance-free；

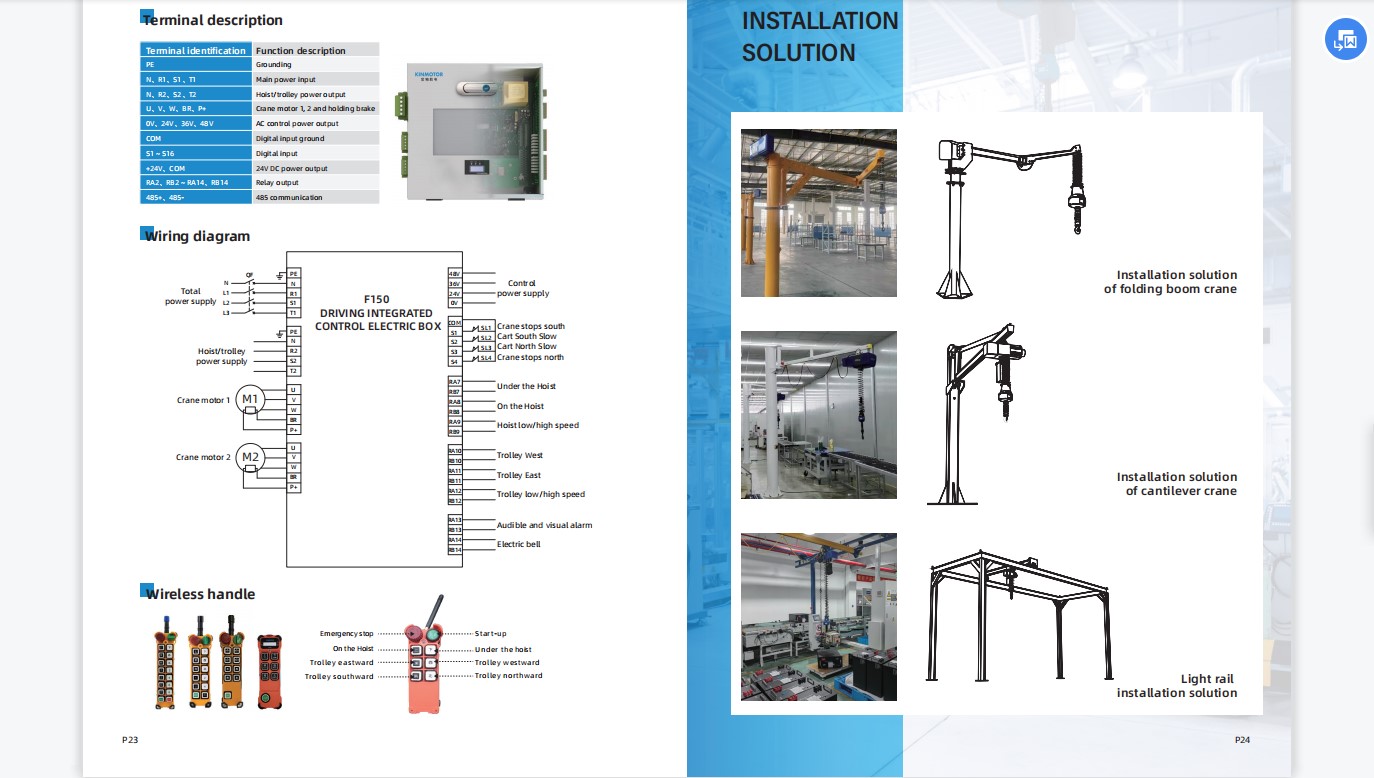

 Abundant interfaces, flexible configuration, and can adapt to various control

interface signals；

 Built-in remote control module to control the operation of electric trolley and large

cars.
